Pressure Reducing Valves
BiS Wells offer a comprehensive range of pressure reducing valves, also known as pressure regulators. These valves control a determined outlet pressure from any given inlet pressure within a certain range.

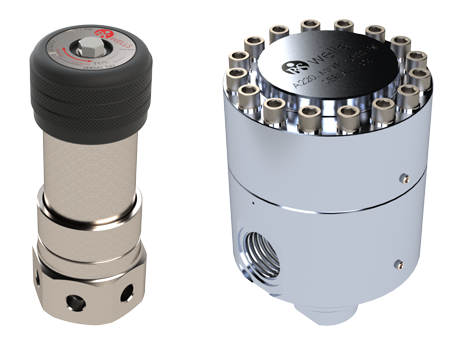

We offer three main types of pressure reducing valve; spring loaded, internally dome loaded and externally dome loaded. Depending on pressure, flow and physical size will determine which type of regulator is most suited to your application.
Our pressure reducing valves can handle inlet pressures up to 7,250 PSI and control outlet pressures from as little as 0.75 PSI through to 6,000 PSI. Valves are offered in Aluminium Alloy as standard but can be manufactured from Stainless Steel, Brass and Aluminium Bronze.
Most of our pressure reducing valves are suitable for both pneumatic and hydraulic applications, please see our overview datasheets for suitability. As standard valves are offered with Nitrile or Viton seals however please contact us for medium compatibility as other elastomers can be offered.
All our pressure reducing valves can be manufactured specially for Oxygen use, please contact us for more information.
Product Datasheets
Pressure Reducing Valves Overview Datasheet
Data Sheets and Installation Drawings
A9, A10, A11 & A12 Spring Loaded Regulators. Up to 6,000 PSI. 0.09 Cv
A15, A16 & A17 Spring Loaded Regulators. Up to 4,500 PSI. 0.6 Cv
A20 Spring Loaded Regulators. Up to 1,000 PSI. 2.0 Cv
A30 Spring Loaded Regulators. Up to 1,000 PSI. 5.0 Cv
A100 & A101 Dome Loaded Regulators 1/2″ Ports. Up to 1,000 Psi. Cv 1.6
A120 & A121 Dome Loaded Regulators. 1-1/2″ Ports. Up to 1,000 PSI. Cv 6.5
A130 & A131 Dome Loaded Regulators. 3″ Ports. Up to 1,000 PSI. Cv 30.0
A200 & A201 Dome Loaded Regulators. 3/8″ Ports. Up to 6,000 PSI. Cv 0.6
A210 & A211 Dome Loaded Regulators. 3/4″ Ports. Up to 6,000 PSI. Cv 1.9
A212 Dome Loaded Regulators. 1″ Ports. Up to 7,250 PSI. Cv 1.9
A220 & A221 Dome Loaded Regulators. 1-1/2″ Ports Up to 4,500 PSI. Cv 6.2
Installation Operation and Maintenance Manuals
General Instructions IOM – Sprung Loaded Regulators
General Instructions IOM – Dome Loaded Regulators
Installation Operation and Maintenance Manual – A212 Series Dome Loaded Regulators
A11 & A12 Service Instructions
A200 & A201 Service Instructions
